| Rated water production capacity with 22 hrs running time + 2 hours Rest time | 1460 litres / Day (at 80% RH and 30 Degree Celsius) 1350 litres / Day (at avg 70% RH and 30 Degree Celsius) |
| Actual size (L*W*H) (cms) | 290*139*235 |
| Net Weight (kg) | 1000 |
| Power rating (kW) | 15.5 kW (at 70 % RH and 30 Degree Celsius) |
| Refrigerant | R410A |
| Power supply | 380 Vac, 3 phase, 50 Hz |
| External storage tank capacity (litres) | 400 – 600, as required. |
| Sound level (dB) | < 65 |
| Air Purification | 10 Mircon – AI mesh supported HDPE fabric |
| Water Purification | 6 Stage filteration, including ozonizer, UV, UF membrane |
| Power efficiency | ~ 0.24 kWh / Litres (at 80% RH and 30 Degree Celsius) 0.26 kWh / Litres (at 70% RH and 30 Degree Celsius) |
| Water output and power consumption is dependent on ambient conditions | |
Frequently Asked Questions

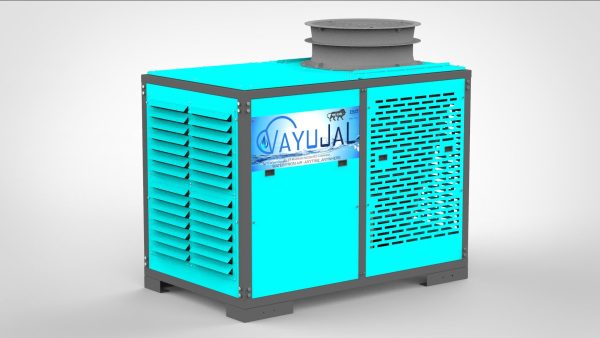

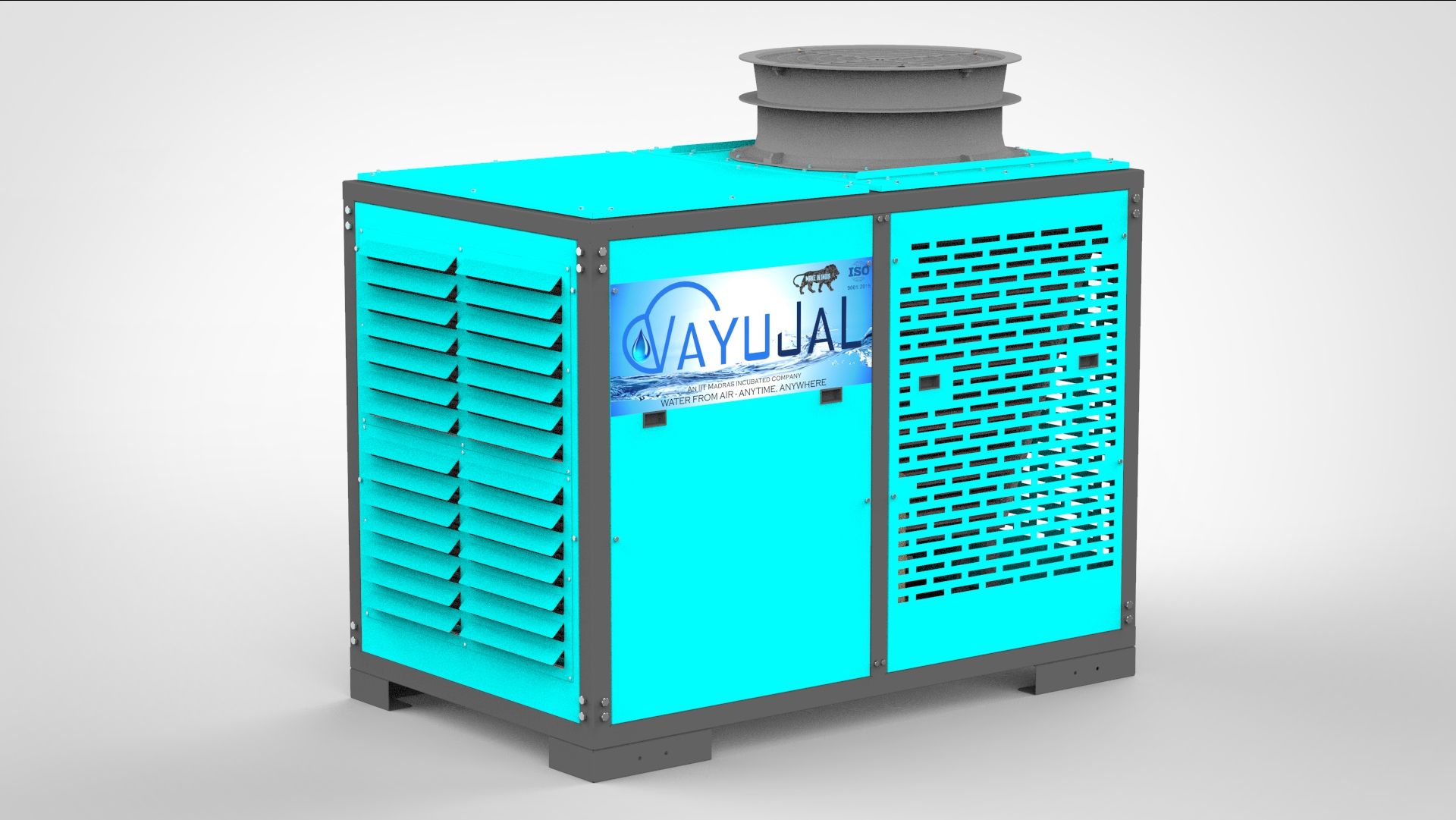

Which large sites is VayuJal Grand built for?
VayuJal Grand is rated at 1,460 litres a day at 80% humidity and 30 °C, based on 22 hours of running plus 2 hours of rest, and can make up to 1,800 litres a day when humidity is higher. It is built for industrial operations, large commercial spaces and community water needs for 100 to 10,000 members, including CSR-driven projects in water-scarce areas.
How much water can one unit contribute to annual sustainability targets?
At its rated 1,460 litres a day, one unit can make about 533,000 litres a year (1,460 × 365). Because output depends on ambient conditions, report measured figures for CSR or ESG disclosures.
What is the energy requirement and cost per litre?
VayuJal Grand uses about 0.24 kWh per litre at 80% humidity and 0.26 kWh per litre at 70% humidity. At 1,460 litres a day that is about 350 kWh a day, or roughly ₹1.4 of electricity per litre at an example ₹6 per unit. The larger machine uses less energy per litre than the smaller models.
What power connection should the site arrange?
It needs a 380 V, 3-phase, 50 Hz supply and has a rated power of 15.5 kW. Ask your electrical team to confirm the sanctioned load and the feeder before installation.
How much floor space, storage and noise should we plan for?
The unit measures 290 × 139 × 235 cm, weighs 1,000 kg and has a sound level below 65 dB. It uses an external storage tank of 400 to 600 litres, chosen to match your demand. Plan a level, load-bearing floor and clear airflow around the unit.
What purification does the water go through?
Air is filtered through a 10-micron HDPE fabric supported by aluminium mesh. The water then passes through 6-stage filtration with an ozonizer, UV and a UF membrane.
